Characteristics of our laminated wood products
Spoiled for choice
Realize the stately project you have in mind by letting yourself be inspired by the vast choice of styles and materials that we offer. The maximum of working with 100% Natural products We will create a product specifically designed to satisfy your tastes and needs.
Vantaggi
- Materiale da costruzione naturale, riciclabile e rinnovabile al 100%
- Grande capacità di costruzione rapida e a secco
- Grande capacità di resistenza al fuoco e alle sollecitazioni sismiche
- Ottime capacità termoisolanti
-Costi ridotti e tempi certi
- Benessere Abitativo
- Versatilità e desing
- Grande duttilitÃ
- Regola l'umidità ambientale
​
​
​
Applicazioni
- Case in legno
- Edifici Residenziali multipiano
- Edifici Industriali
- Capannoni Agricoli e industriali
- Impianti Sportivi
- Palazzetti dello Sport
- Recupero del patrimonio edilizia
- Capriate in legno lamellare
- Strutture in legno con grandi luci
Technical data
STANDARD / CERTIFICATION EN 14080: 2013
SURFACES OF THE FACES
Visible quality
Industrial quality
MAXIMUM SECTIONS: from 80 to 1800 mm with steps of 40 mm
Special elements up to 4,200 mm Width: from 60 to 280 mm in steps of 20 mm by means of multiple gluing
Length: up to 33m and up to 44m for special elements
RESISTANCE CLASSES GL24h GL24c up to 280 mm wide GL28h GL28c width GL30h GL30c GL32h GL32c up to 200 mm wide
TYPES OF WOOD Spruce / white Larch Pine Other types on request
GLUING Melamine resin with clear gluing joints; type I glue according to EN 301, approved for gluing load-bearing and non-load-bearing wooden components for interiors and exteriors
WOOD HUMIDITY 12% ± 2.5%
SPECIFIC WEIGHT For spruce wood, depending on the strength class, on average approx. 400 kg / m3 to 500 kg / m3
THERMAL CONDUCTIVITY l = 0.13 W / mK
RESISTANCE TO DIFFUSION in accordance with EN ISO 10456 m = 50 (dry) to 20 (wet)
FORMALDEHYDE E1 EMISSIONS according to EN 717-1 (<0.1 ppm)
REACTION TO FIRE D-s2, d0
FIRE RESISTANCE 0.70 mm / min according to EN 1995-1-2
WITHDRAWAL AND EXPANSION perpendicular to the au fibers, 90 = 0.24% for every 1% variation in wood moisture
parallel to the au fibers, 0 = 0.01% for every 1% change in wood moisture
DIMENSIONAL TOLERANCES in accordance with EN 14080
CLASSES OF USE (EN 1995-1-1) Class of use 1 heated indoor environments Class of use 2 covered outdoor environments Class of use 3 exposed to atmospheric agents (on request)
WE PRODUCE THE BEAMS ON THE CUSTOMER'S BILL
Alternative formula to the standard production of beams, Emma Industrie offers a service to its customers of production on measures of laminated wood beams, we also offer a cutting service on project for a quick and precise assembly of your wooden structures, shaping, and treatment colored pesticide.
Cut to Measure and Assembly

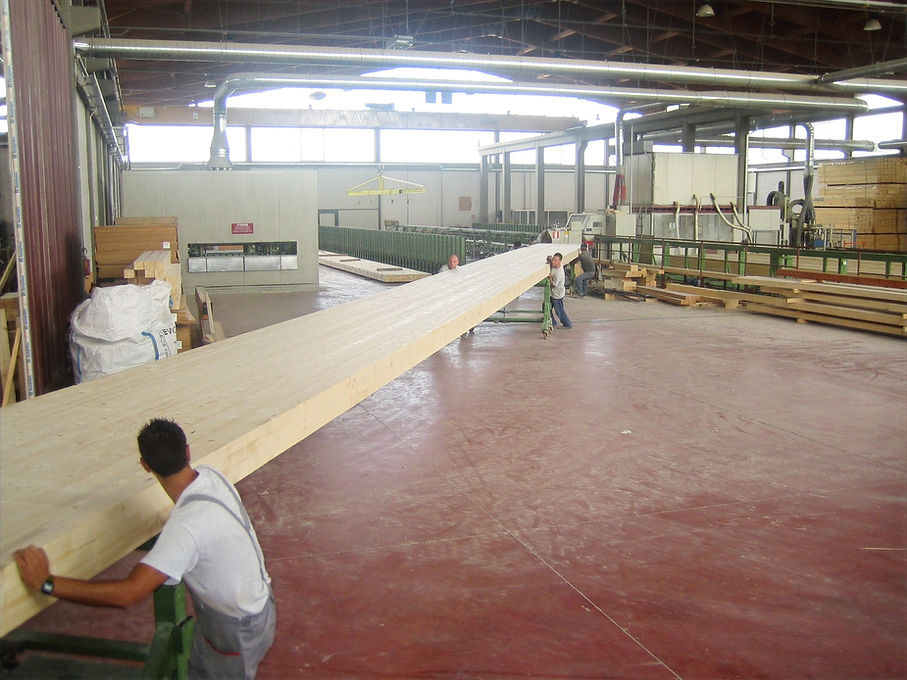

Emma Industrie offers its customers the possibility to receive the wooden structure, wooden houses, wooden bridges, sports facilities, wooden tensile structures, places of worship, pre-assembled in the factory with millimeter precision according to your executive drawings, we guarantee the maximum professionalism of this service, boasting thirty years of experience with specialized workers and cutting-edge equipment.
Pesticide treatment
One of the strong points of the Emma Industrie company is to deliver to the customer a finished product treated with pesticide impregnating agents, paints using only the best guaranteed and certified products.
Tailor made production
One of the niche products that Emma Industrie offers is to produce wooden elements for structural and non-structural use in the factory, customizing their measurements according to the project needs, thus reducing the management costs of the order, and the costs of the end user.
